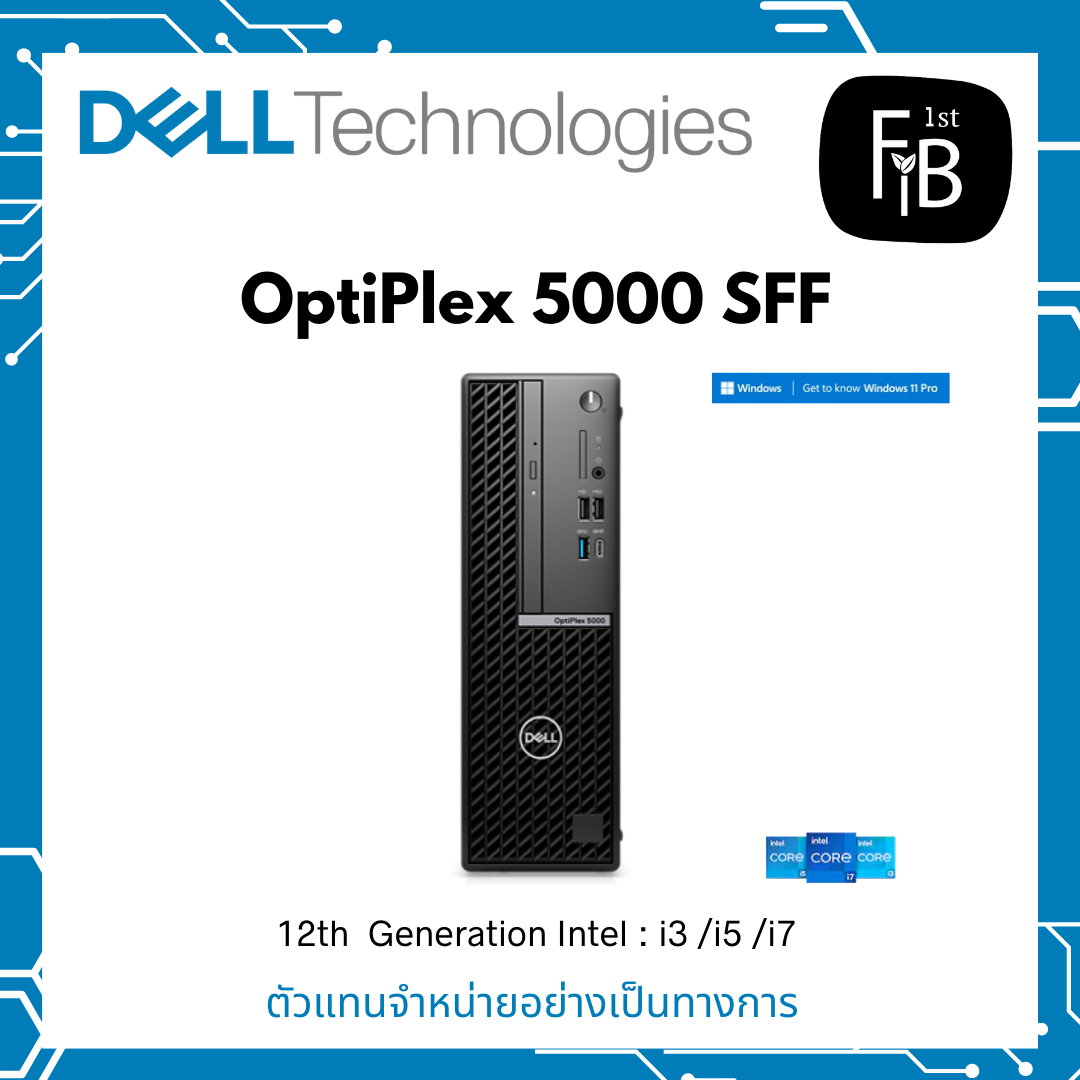

OptiPlex 5000 Small Form Factor
Core i3 / i5 / i7
Processor :
12th Generation Intel Core i3
12th Generation Intel Core i5
12th Generation Intel Core i7
Memory :
4 GB, 1 x 4 GB, DDR4, 3200 MHz, single-channel
8 GB, 1 x 8 GB, DDR4, 3200 MHz, single-channel
8 GB, 2 x 4 GB, DDR4, 3200 MHz, dual-channel
16 GB, 1 x 16 GB, DDR4, 3200 MHz, single-channel
16 GB, 2 x 8 GB, DDR4, 3200 MHz, dual-channel
16 GB, 4 x 4 GB, DDR4, 3200 MHz, dual-channel
32 GB, 1 x 32 GB, DDR4, 3200 MHz, single-channel
32 GB, 2 x 16 GB, DDR4, 3200 MHz, dual-channel
32 GB, 4 x 8 GB, DDR4, 3200 MHz, dual-channel
64 GB, 2 x 32 GB, DDR4, 3200 MHz, dual-channel
64 GB, 4 x 16 GB, DDR4, 3200 MHz, dual-channel
128 GB, 4 x 32 GB, DDR4, 3200 MHz, dual-channel
Storage :
3.5-inch, 4 TB, 5400 RPM, SATA, HDD
3.5-inch, 1 TB, 7200 RPM, SATA, HDD
3.5-inch, 2 TB, 7200 RPM, SATA, HDD
2.5-inch, 1 TB, 5400 RPM, SATA, HDD
2.5-inch, 2 TB, 5400 RPM, SATA, HDD
2.5-inch, 500 GB, 7200 RPM, SATA, HDD, Self-Encrypting Opal 2.0, FIPS
2.5-inch, 500 GB, 7200 RPM, SATA, HDD
M.2 2230, 256 GB, PCIe NVMe Gen3 x4, SSD, Class 35
M.2 2230, 512 GB, PCIe NVMe Gen3 x4, SSD, Class 35
M.2 2230, 1 TB, PCIe NVMe Gen3 x4, SSD, Class 35
M.2 2230, 256 GB, PCIe NVMe Gen3 x4, SSD, Class 35, Self-Encrypting, Opal 2.0, FIPS
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 1 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 2 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 512 GB, PCIe NVMe Gen3 x4, SSD, Class 40, Self-Encrypting, Opal 2.0, FIPS
M.2 2280, 1 TB, PCIe NVMe Gen3 x4, SSD, Class 40, Self-Encrypting, Opal 2.0, FIPS
Power Supply :
- 300 W internal power supply, 92% Efficient PSU, 80 Plus Platinum
- 260 W internal power supply, 85% Efficient PSU, 80 Plus Bronze
- 240 W internal power supply, 85% Efficient PSU, 80 Plus Bronze
Graphics :
- Intel® UHD Graphics 710 with 12th Generation
- Intel®Pentium® Gold G7400 processor
- Intel® UHD Graphics 730 with 12th Generation Intel® Core™ i3-12100, i3-12300, and i5-12400 processors
- Intel® UHD Graphics 770 with 12th Generation Intel® Core™ i5-12500, i5-12600, i7-12700, and i9-12900 processors
- AMD Radeon™ RX 640, 4 GB GDDR5
- AMD Radeon™ 540, 1 GB GDDR5
- AMD Radeon™ 550, 2 GB GDDR5
I/O
Front:
1 USB 2.0 port with PowerShare
1 USB 2.0 port
1 USB 3.2 Gen 1 port
1 USB 3.2 Gen 2x1 Type-C® port
1 Universal audio port
Rear:
4 USB 3.2 Gen 1 ports
2 USB 2.0 ports with Smart Power On
2 DisplayPort 1.4 ports
1 RJ45 Ethernet port
Optical
8x DVD±RW, Slimline 9.5 mm (optional)
8x DVD-ROM 9.5mm (optional)
Communications
Optional wireless:
- Intel® AX211, 2x2 MIMO, 2400 Mbps, 2.4 GHz/5 GHz/6 GHz, Wi-Fi 6E (WiFi 802.11ax), Bluetooth® 5.2
- Realtek RTL8821CE, 1x1, 433 Mbps, 2.40 GHz/5 GHz,
Wi-Fi 5 (Wi-Fi 802.11ac), Bluetooth® 5.0
- Realtek RTL8822CE, 2x2 MIMO, 867 Mbps, 2.40 GHz/5 GHz, Wi-Fi 5 (WiFi 802.11ac), Bluetooth® 5.0
Operating System
• Microsoft® Windows 11 Home (64-bit)
• Microsoft® Windows 11 Pro (64-bit)
• Windows 11 Downgrade (Windows 10 image)
• Microsoft® Windows 11 Pro Education (64-bit)
• Ubuntu® 20.04 LTS (64-bit)
• Kylin® v10.1 (China only)
• Windows 11 CMIT Government Edition 64-bit (China only)
Ports & Slots - Small Form Factor
Front:
1. Power Button
2. Optional DVD/RW
3. 2 USB 2.0 ports (one port includes PowerShare)
4. USB 3.2 Gen 1 port
5. Optional SD 4.0 Media Card Reader slot
6. Universal Audio jack
7. USB-C 3.2 Gen 2 port
Rear:
8. 2 DisplayPort 1.4 ports
9. 4 USB 3.2 Gen 1 ports
10. 2 USB 2.0 ports with SmartPower On
11. 2 PCIe Expansion slots
12. Power connection
13. Power Diagnostic Light
14. Slide Panel Release Latch
15. Optional Serial/PS2 port
16. Optional HDMI 2.0b/ DisplayPort 1.4a/ VGA/ USB Type-C with DisplayPort Alt mode
17. RJ-45
18. Padlock loop
